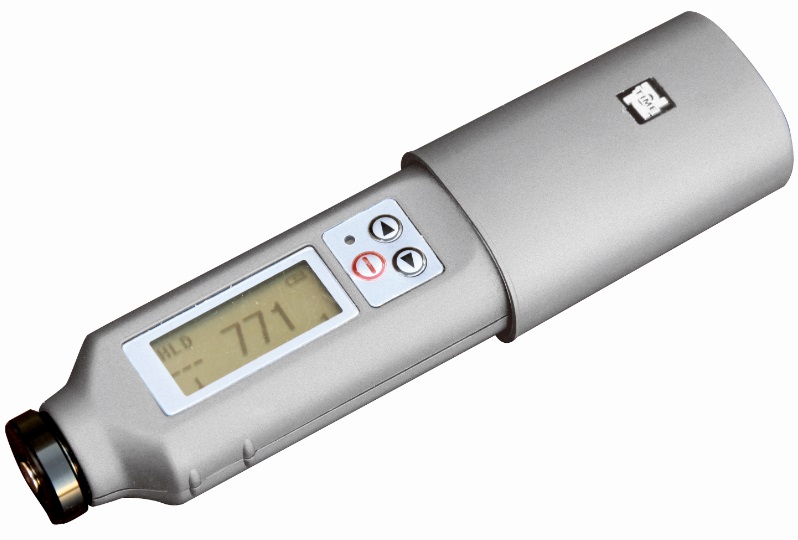

Economic Metal Hardness Testing Tool TIME®5120



TIME®5120 is the best priced dynamic leeb hardness tester. It is mini and integrated with impact device D for the majority of hardness testing requirements.




Feature

Features

  • Light Mini Unit with simple menu, easy and convenient to use
  • Universal D type standard impact device for the majority of hardness testing requirements
  • Wide range measurements in HLD and conversion among other 6 common hardness scales
  • Measuring Direction: Any direction 360°
  • Software calibration
  • Battery indicator with auto power off in low battery



Standard Delivery

?

Optional Accessory

Main unit

1

Support rings

Test block HLD

1

?

Charger

1



Cleaning brush

1



TIME certificate

1



Warranty card

1



Instruction manual

1






Spesification

Technical Specification

Standard impact device

D integrated

Hardness scales

HL,HB,HRA,HRB,HRC,HV,HS

Measuring range

(170~960)HLD

Accuracy

6HLD

Memory

Current value




960HLD



Rmin=50mm(with support ring Rmin=10mm)

workpieces

5mm



Indentation depth

24µm

Charging time

2h~3h

Continuous working time

8h

Power supply

Rechargeable Li battery 3.7V

Operating temperature

0~40°C

Dimension (mm)

145×35×30

Weight (g)

130
