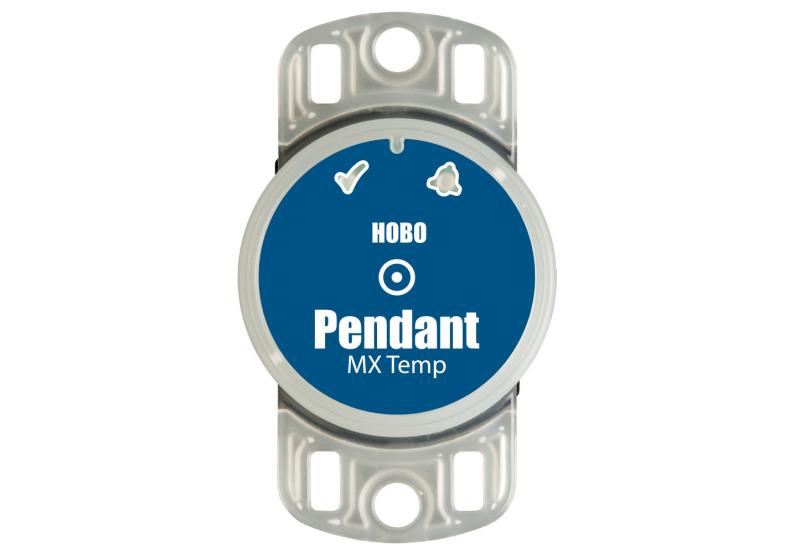

HOBO Pendant MX Water Temperature Data Logger



The HOBO MX2201 waterproof temperature logger leverages the power of Bluetooth Low Energy (BLE) to deliver accurate temperature measurements straight to your iOS or Android mobile device. Designed for durability, this compact waterproof logger is ideal for measuring temperature in streams, lakes, oceans, and soil environments. Data collection in the field has never been easier!


Feature

  • Convenient wireless setup and download via Bluetooth Low Energy (BLE)
  • Large memory stores 96,000 measurements
  • Waterproof to 30 meters (100 feet)
  • User-replaceable battery
  • Mounting tabs for fast, easy deployment
  • LED alarm notifies you when temperature exceeds set threshold
  • Works with Onset’s free HOBOmobile app
  • ±0.5°C (±0.9°F) accuracy

Spesification

Temperature Sensor (MX2201 and MX2202)

Range

-20° to 70°C (-4° to 158°F) in air

-20° to 50°C (-4° to 122°F) in water

Accuracy

±0.5°C from -20° to 70°C (-4° to 158°F)

Resolution

0.04°C (0.072°F)

Drift

<0.1°C (0.18°F) per year

Response Time

17 minutes typical to 90% in air moving 1 m/s, unmounted

7 minutes typical to 90% in stirred water, unmounted



Logger

Radio Power

1 mW (0 dBm)

Transmission Range

Approximately 30.5 m (100 ft) line-of-sight

Wireless Data Standard

Bluetooth Smart (Bluetooth Low Energy, Bluetooth 4.0)

Logger Operating Range

-20° to 70°C (-4° to 158°F) in air

Logging Rate

1 second to 18 hours

Buoyancy (Fresh Water)

2g (0.07 oz) positive

Waterproof

To 30.5 m (100 ft)

Memory

96,000 measurements

Battery

CR2032 3V lithium, user replaceable

Battery Life

1 year typical at 25°C (77°F) with logging interval of 1 minute and Bluetooth Always Off disabled in software.

2 years typical at 25°C (77°F) with logging interval of 1 minute and Bluetooth Always Off enabled in software.

Faster logging intervals and statistics sampling intervals, burst logging, remaining connected with the app, excessive downloads, and paging may impact battery life.

To ensure proper battery installation, see Battery Information for detailed instructions on replacing the battery.

Time Accuracy

± 1 minute per month at 25°C (77°F)

Full Memory Download

Approximately 45 seconds; may take longer the farther the device is from the logger

Wetted Materials

Polypropylene case, EPDM O-ring

Dimensions

3.35 x 5.64 x 1.8 cm (1.32 x 2.22 x 0.69 inches)

Weight

12.75 g (.45 oz)
