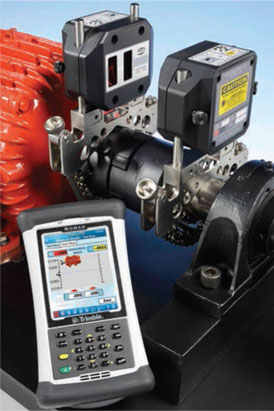

S-680BP WIRELESS 5-AXIS SHAFT ALIGNMENT SYSTEM - BASIC MODEL
Featuring our Dual-Beam™ PSD Detector Technology and our 5-Axis Wireless Target, the S-680BP offers most of the advanced features of the S-680P but without the extra options for the more budget-minded, high-end user. With the highest accuracy on the market, industry-leading graphics, live move screen, wireless communication and the powerful Couple5 Software, the S-680BP offers the best value in the shaft alignment industry.
We designed our Couple5 software to run on compact, rugged PDA's for tight spaces and light weight. Couple5 also features our Easy-Guide™ approach to software navigation. Just open the software, choose a file, and Couple5 will to guide the user through the alignment and if needed, help text is just a click away. Advanced machine graphics continuously update showing the alignment of the motor as you move it.
The S-680’s industry-leading accuracy comes from our patented Dual-Beam™ Technology that allows the measurement of offset and angle simultaneously with one PSD (sensor), thus eliminating 50% of measurement errors when using 2 sensors (all other systems use 2 sensors). But we didn’t stop there. We went even further by using super-linear, 33-mm PSD’s and state-of-the-art electronics to produce measurement accuracy that is 7-13 times better than our competitor’s high-end systems.
Feature
- Technology: Dual-Beam™
- Software: Couple5 for Smartphones and PDAs
- System configuration: S-680 system with R-1345 Fully Rugged PDA device and Couple5 Software with S-1395BL Basic Features License. Optional features include: Bolt Bound™, Thermal Growth Modeling Screen, Spacer Shafts, Repeatability/History Table, User Defined Tolerances, Vertical Machine, and many more.
Couple5 Screen Tour
Spesification
- 1. L-790 Dual-Beam™ Laser
- 2. T-1290 Dual-Beam™ 5-Axis Wireless Target with 33x13 mm PSD and 0.5 micron res. and BT Class 1
- 3. R-1345 Fully Rugged Win Mob 6.1 PDA with Couple5 software pre-installed
- 4. S-1395-BL Basic Features License & electronic manual.
- 5. A-980 Stainless Steel Bracket Set for 1.5” to 6” (37 mm to 152 mm) shafts with 4” (102 mm) and 8”(204 mm) Posts
- 6. 2 Port USB A/C charging adapter for laser/target
- 7. USB charging/backup cable x 2
- 8. Tape measure
- 9. Rugged, large-capacity, sealed shipping case with custom-cut foam.
