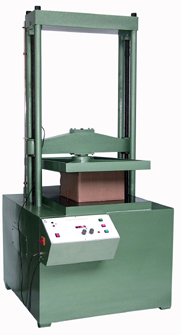

Box Compression Tester
Feature
- Platten Size 600 x 600 mm / 1000 x 1000 mm
- Load capacity 0-1000, 0-2000 Kgs
- Option: Special dedicated window based software for interfacing main unit with computer and printer, for computer based control, data collection and data analysis for arithmetic mean, max, mininum, standard coefficient of variation (CV), maximum / minimum of series, peak value, selection of unit either Kgf. Or kN and graphical presentation of test series and real time graph
Spesification
Heavy Duty tester to determine the compression strength of the corrugated box.
Load range selected to completely collapased as Peak load or may be with pre determined load on
Capacity | 10 KN / or 1000 Kgf |
Standard Press Platens |
Two parallel platen one fixed and one movable with for load cell or one centralised jumbo load cell of good accuracy |
Platen size | 91000 X 1000 mm |
Lower Platen | Marked to positon package |
Maximum Travel | 1000 mm with normal ball screw of low friction |
Test Speed | 5 mm to 50 mm per minutes, ± 2.5% |
Peak value picked and displayed on 4.5 digital display.
Automatic end limit stop.
The upper and movable compression platten may be provided in fixed or swievel model as per TAPPI / ISO as per customer requirement
Platten size in mm | Capacity | strokes |
600X600 | 1000 Kgf./10 KN | 610 mm |
500x500 | 1000 Kgf./10 KN | 500 mm |
700X500 | 1000 Kgf./10 KN | 700 mm |
1000x1000 | 2000 Kgf./20 KN | 1000 mm |
1000x1000 | 5000 Kgf./50 KN | 1000 mm |
Shipping Data | Ordering Data |
Net Weight 750 Kg | Model No |
Gross weight 900 Kg | Voltage As per customer request |
Dimension | Frequency |
Complies with
ASTM D642, APPTIA P 800, ISO 12048, TAPPI T 804, FEFCO NR 50
