ULTRASONIC FLAW DETECTOR RDG 2500
Feature
- DAC curve: up to 10 point, stored; from display is selected 3 curve additional (-6dB - 12dB + 1 custom)
- AVG/DGS: based on universal diagram (only for RDG 2500)
- TGC circuit: max 10 points 770dB
- Back wall echo attennuation: 0-30dB
- Monitor: 2 gate copletely independents with alarm for position and width, cotrolled at the full range amplication 0-100% FSH
- Trigger: Positive or negative for each gate with audible and visual alarm
- Freezing function
- Echodynamic analysis
- Autocalibration on two echo
- Storage: 100 calibration and 1000 A-scan
- Data logger: for 1000 data of thickness (RDG 2500) - 4000 data (RDG2000) in files
- Archives: possibility of storage and archiives the A-scan with curve DAC/DGS and comment
- Language: 2 main language (Italian adn English)
- Output: USB,ANA analog output for distance and ampltude

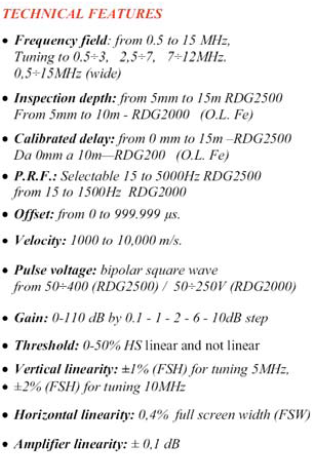

Spesification
