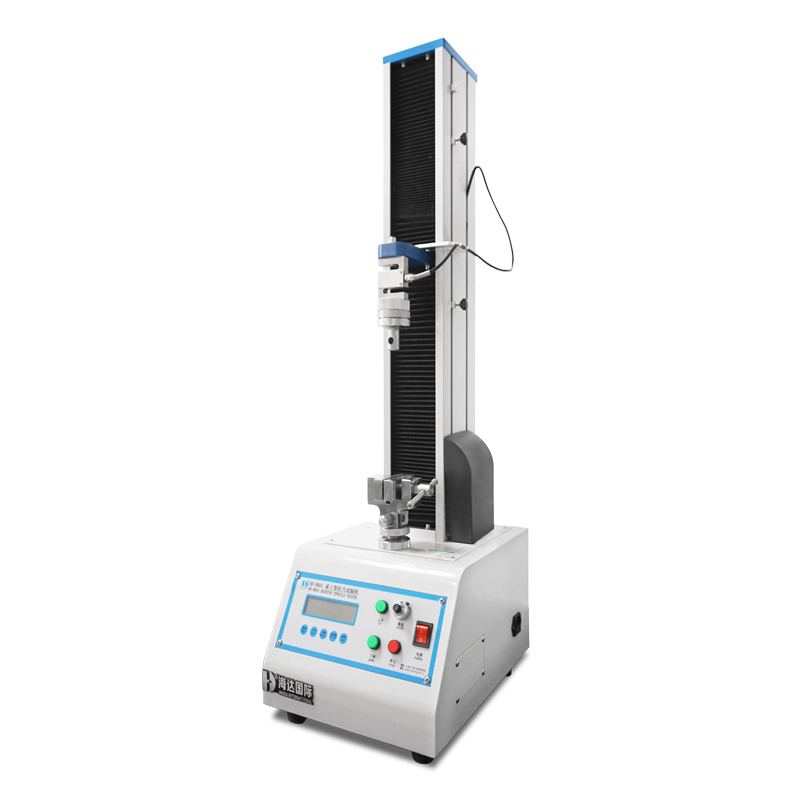

Tensile Tester
This tensile tester can do tensile test, tear test, peel test, bond test with different clamps for paper, tape, film ,leather and other kind of materials.
This tensile test equipment uses the motor to drive screw to move fixtures. Fix sample between upper and lower fixture and pull sample by the upper fixture upward with specified speed. The load cell connecting with upper fixture will sense the force and then convert it into voltage sign to the display screen. Force value will be displayed automatically on the screen.
Benefit Features
-
High-tech, low noise
-
Humanized industrial design, easy to place and transport
-
The world famous brand core precision components
-
Security protection system
-
Valid test trip length (modifiable)
Applications
-
Deformation under defined load: Test deformation under defined load of tested sample
-
Load under defined deformation: Test load under defined deformation of tested sample
-
Software can issue report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
-
This universal test equipent can do different test as per customer requirement such as peel test, tear test, compression test, bend test with different clamps.
Design Standard:(including but not limited to )
ASTM,JIS,CE, ISO,EN,BS EN,SAE,FTM...etc.
Spesification
Item |
Description |
|
200 kg (2KN) |
Load cell |
China brand load cell |
Control system |
Controller with LED |
Printing |
Built-in Printer |
Motor |
Adjustable-speed motor, ball screw rod |
Force reading |
KG/N/LB |
Stoke |
900mm including fixture |
Load cell Resolution |
1/100,000 |
Load Precision |
≤1% |
Test speed |
50~300mm/min (adjustable by rotary knob) |
Data display |
|
Safety features |
Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
